Hobbywing Multifunction LCD Program Box for Platinum, Xerun, Ezrun ESC

HBW-HW30502002

New product

Hobbywing

This Multifunction program box is used to program the brushless ESC as an independant device, or a USB linker to program or to update ESC firmware or can also be used as a LiPo battery digital voltmeter. It has friendly user interface and easy to use. Suitable for: PLATINUM ESC for planes/helicopters, Xerun & Ezrun series ESC for cars, Seaking Pro series ESC for boats.

More details

Available

By buying this product you can collect up to 37 points . Your cart will total 37 points that can be converted into a voucher of US $0.87 .


US $44.24

More info

Hobbywing Multifunction LCD Program Box for Platinum, Xerun, Ezrun ESC

Support for multiple languages


It makes it easier to adjust ESC parameters.
Note: It is planned to expand support to other languages ​​in the future.
Supports 3 languages: Chinese, English, Japanese

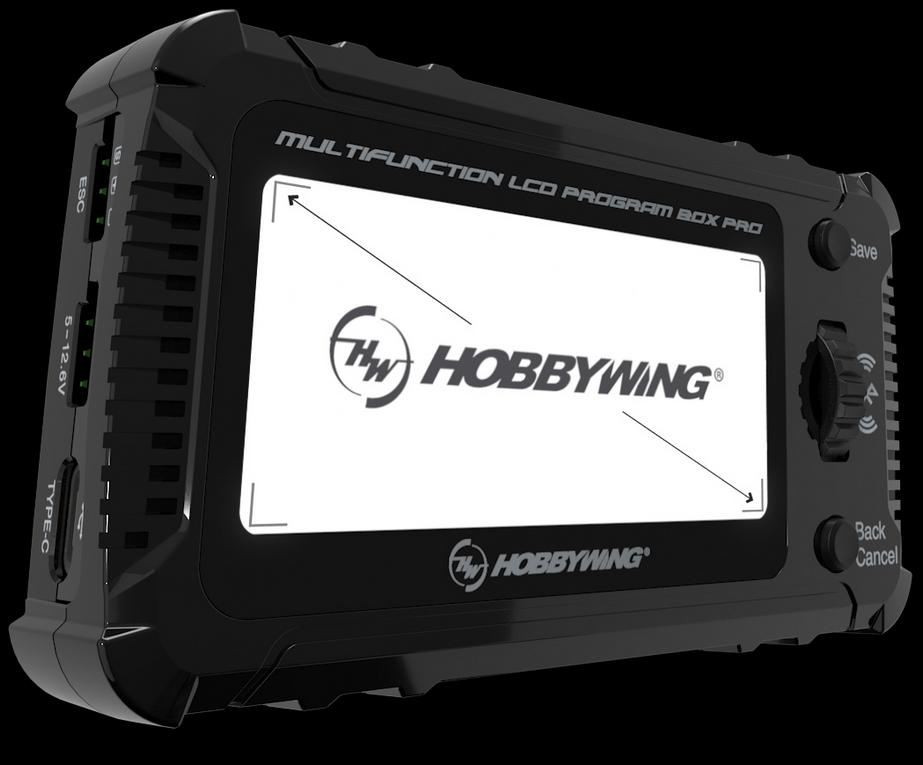

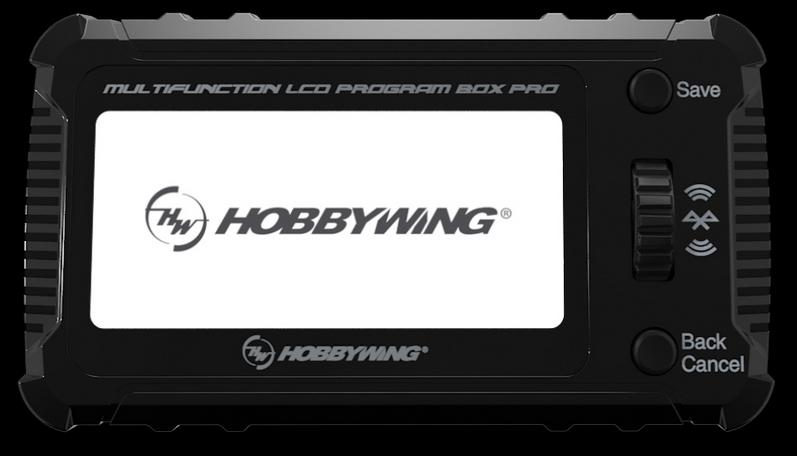

The large screen is easier to read than ever before.



Equipped with a 2.8-inch screen
The new screen doubles the characters and information on the screen compared to the previous LCD programming box.

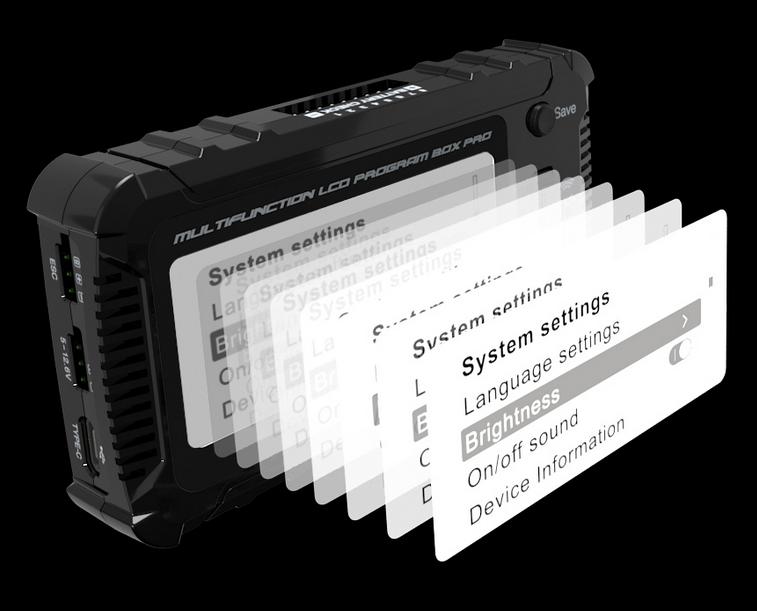

Allows you to adjust the brightness

Meets the needs of viewing in environments with varying brightness.

Supports 20 adjustable brightness levels.

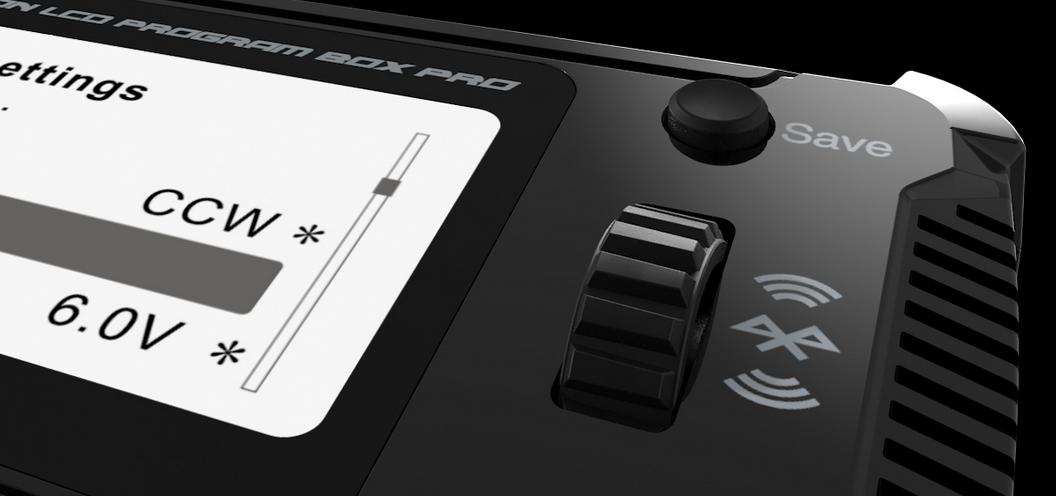

The thumbwheel helps improve the quality of life

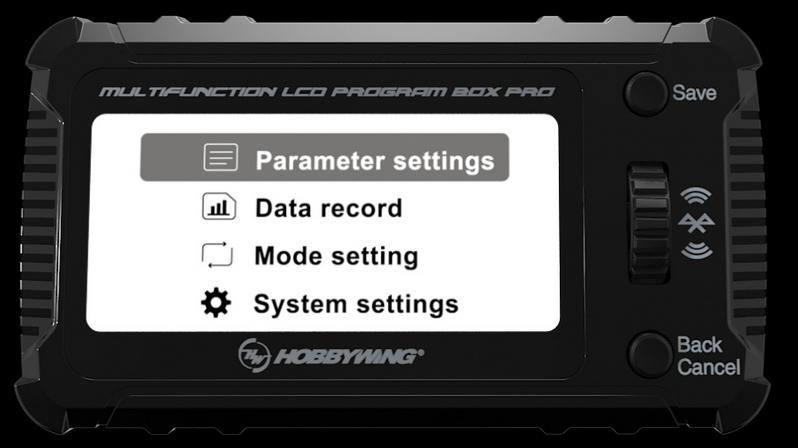

Simplified operation and control with the single thumbwheel interface.

Navigating speed control settings is easier than ever before.

Import and export controller profiles


Import and export your favorite profiles with ease. You can bring your controller settings, save them, and export them to a new controller. This makes sharing profiles simple and easy.

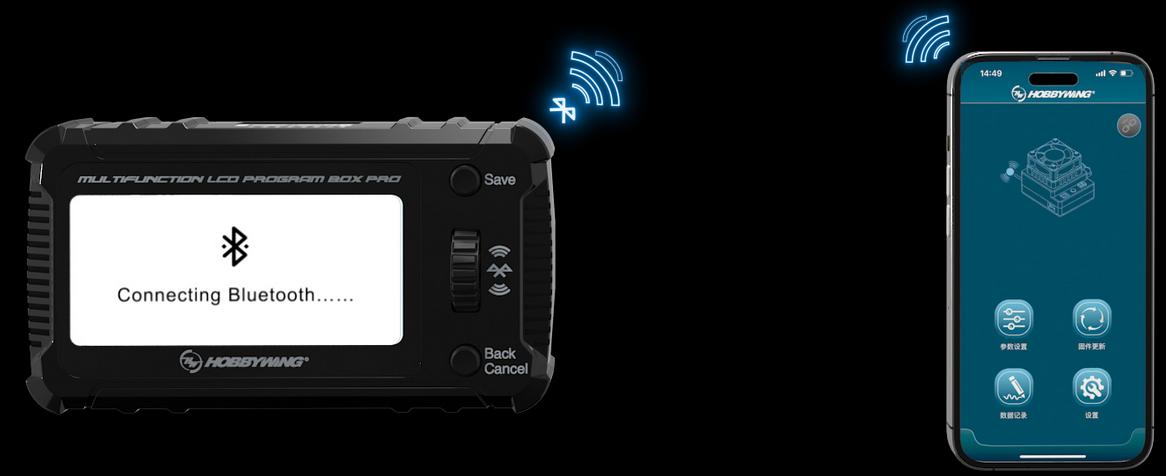

Parameter adjustment and firmware update via OTA


The built-in Bluetooth module works as an OTA programmer. The ESC establishes a wireless connection with a smartphone via the LCD programming box.
The HW Link V2 app can be used to adjust the ESC and update the firmware.
Supports firmware updates of the LCD programming box itself.

Built-in sound

Sound is built in to facilitate confirmations of saving settings. The sound can of course be turned off.

Technical specifications

  • Dimensions: 105.6 x 59 x 24.4 mm
  • Weight: 85 g
  • Input voltage: 5-12.6V (a separate battery is required to power this program box when the ESC does not have a built-in/external BEC)
  • Interface: TYPE-C USB， ESC interface (Futaba plug), power interface (Futaba plug）
  • Display: LCD
  • Features:

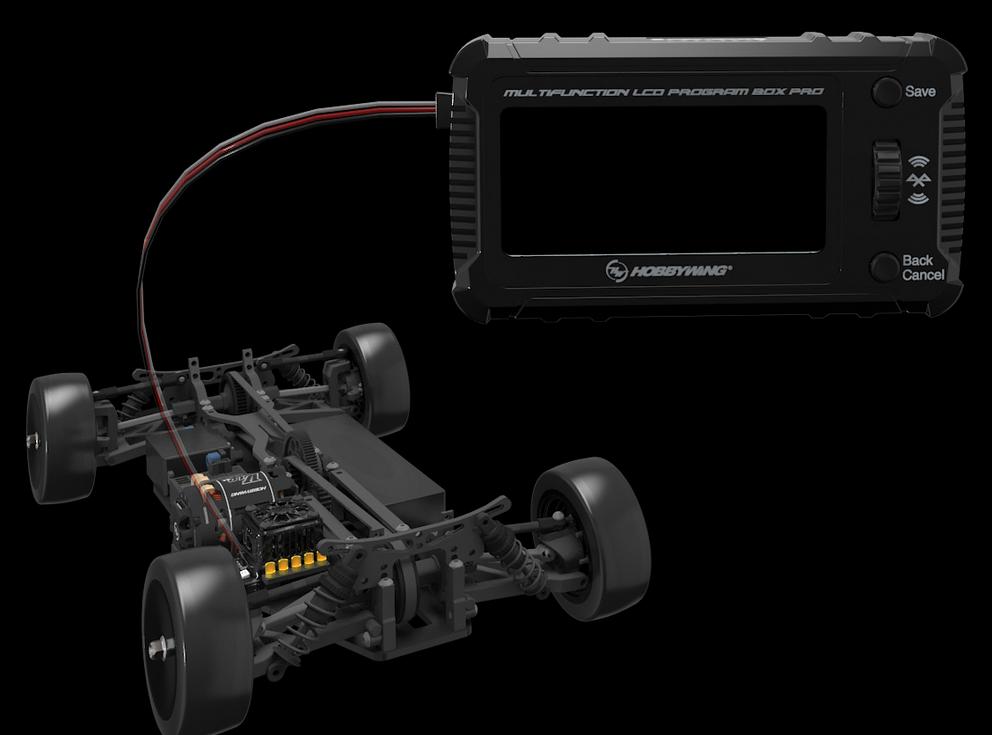

    • As an independent parameter adjustment device, directly use the built-in LCD screen to view, adjust and share the ESC parameters (import).
    • Connect the ESC to a computer using a USB adapter. Use the USB Link application software on the computer to update the ESC firmware and adjust the parameters.
    • The Bluetooth OTA module: Use the mobile APP to adjust the ESC parameters, update the firmware and read the data.
    • Detect the overall voltage of the lithium battery and the individual voltage of each cell.
NOTE: The scope of application here can also be understood as all ESCs that the old G2 LCD program box and OTA Bluetooth module can support.
