Micro Quad LKTR120 V2 FPV ARF View larger

LKTR120 V2 Micro Quad FPV Racer BNF (Low latency version)

OVK-LKTR120V2BNF-QU08

New product

Oversky

LKTR120 V2 Micro Quad FPV Racer fully assembled (77g). Low latency analogic version specifically designed for FPV Racing.

More details

Available

No reward points for this product because there's already a discount.


$136.90

$273.79

More info

LKTR120 V2 Micro Quad FPV Racer fully assembled (77g). Low latency analogic version specifically designed for FPV Racing.

High quality micro racer FPV fully assembled with attention to details. Delivered bind and fly including the battery. You only have to bind the integrated DSM2 compatible receiver with your radio. This nano racer offers top quality equipment for your full satisfaction.

This micro quadcopter has been designed by FPV specialists to offer the best FPV experience. It's on board equipement has been selected with the aim of FPV Racing capabilities. This low latency analogic version eliminate any possible video lag. The flight control board is the Oversky 32, the best micro racers class available board onb the market. The 4 powerful brushless motors have been specifically manufactured to obtain the FPV Racing required performances.

Description

The flight weight of this micro racer is 77g including all the parts. Fully assembled. Motor to motor distance is 120mm. The flight time is about 10 minutes with 300mAh7.4V25C battery. The frame is redesigned on the base of the original LKTR120.  It can fit the camera and the VTX perfectly, the standoffs is aluminum made (14mm), stronger and very light.

Content

  • One set of LKTR120 V2 frame
  • DP03 6500KV brushless motor: 4 pcs (weight is 3g, 6500KV, with 1.5mm shaft)
  • MP-7A ESC: 4 pcs
  • 2 sets of 56mm propeller (8 props)
  • One piece of MX-VTX-B with clover antenna
  • 120° lens analog camera
  • One piece of MX OVERSKY 32 flight control board (integrated with DSM2 7CH receiver, supports firmware of  BaseFlight and CleanFlight)
  • 1 pcs of 300mAh25C7.4V battery

Requested

  • Your DSM2 compatible radio (or any other brand equiped with a DSM2 module)
  • FPV Googles
  • 2S Lipo charger

Additional information

  • The integrated DSM2 compatible 7CH receiver outputs data through the serial port;
  • It supports external receivers such as PPM, DSM2/DSMX, SUMD or SBUS (revert circuit needs to be added)
  • Suggested max flying weight should not be more than 120g for best performance.
  • The Hermit quadcopter was designed to be plug and play, no soldering required.
  • By default all flight modes are "Angle" self leveling. Add more flight modes via the BaseFlight/CleanFlight software.
  • Download your FC firmware to customize your settings (Hermit comes loaded with CleanFlight):
          Download CleanFlight Chrome App
          Download BaseFlight Chrome App

FPV 5.8GHz Tx Channel Selection:

TX Channels

Binding Operation:

  • Press the binding switch on the receiver (green LED is on), then power on the FC board, release the binding switch and the green LED on the receiver flashes quickly (the receiver enters binding mode);
  • Press the binding switch on the DSM2 transmitter and then turn on the power;
  • When the fast flashing LED on the receiver stops and changes to constant bright , it indicates the binding is successful. If it does not, please repeat the above process.

Arming the motors for flight:

  • Throttle to THR, Elevator to PITCH, Aileron to ROLL, Rudder to YAW
  • To Arm: Pull the throttle to 0, turn YAW to the right (1 second) (if it is still unlocking, please set range of YAW and THR to 120%, and check the channel direction and then try)

ESC Calibration:

Connect the assembled Hermit to Cleanflight GUI through USB, click connect (Attn: please don’t connect the battery yet, and for safety remove props);

Click the check mark from the motors option and pull up the Master slider to full. This will max the motor outputs to full at 1850.

Now connect the flight battery and as soon as you hear two beeps from the motors pull the Master slider down to 0.

A single confirmation beep will be heard confirming the calibration. You can now disconnect the battery and USB cable.

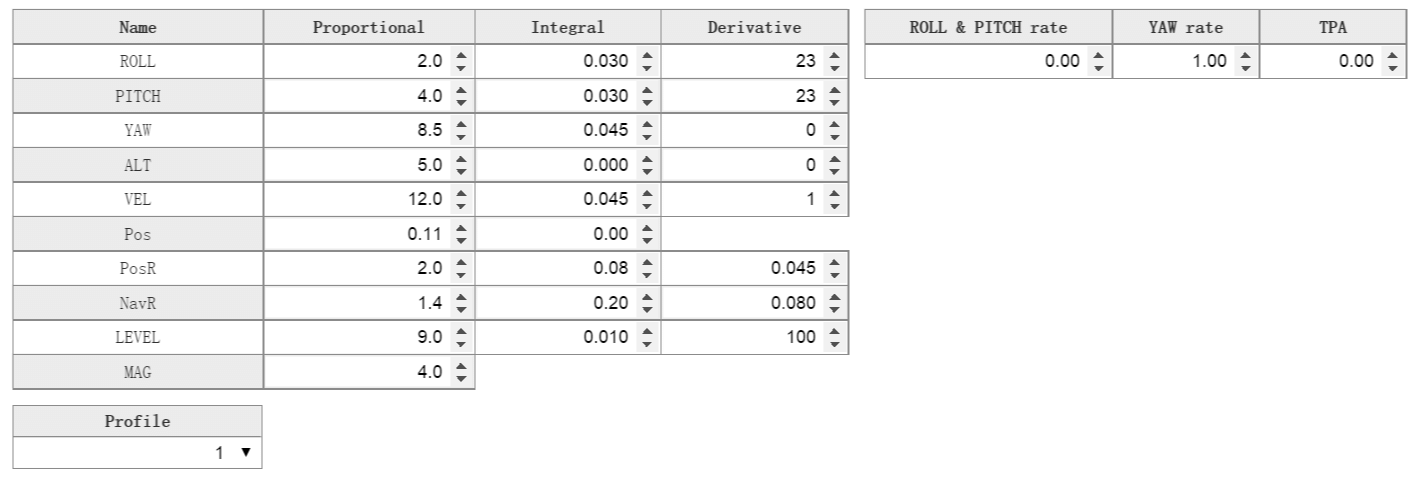

PID Settings that come pre-configured

Hermit PIDs

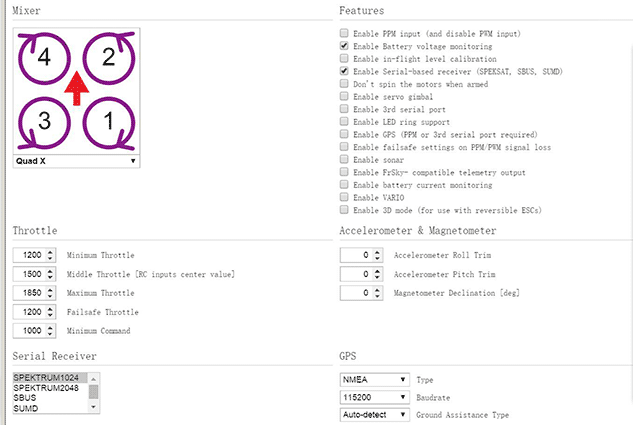

Hermit settings

  • Reviews
  • Grade
    2016-08-21

    Which firmware?

    Sorry for writing a question instead of a review but didn't found where to comment.
    Someone posted here Cleanflight (I think, it's not explicitly said) PID settings.
    Which firmware PIDs are them?
    Thank you

    Grade
    2016-08-21

    Which firmware?

    Sorry for writing a question instead of a review but didn't found where to comment.
    Someone posted here Cleanflight (I think, it's not explicitly said) PID settings.
    Which firmware PIDs are them?
    Thank you

    Grade
    2016-03-14

    Vol Acro FPV

    Après plusieurs petits soucis liés au montage d'origine (soudures qui lachent...toutes les éléments qui se décolent) j'ai en fin réussi à voler et je dois dire que quad est vraiment un petit bijoux il se comporte comme les grands c'est un vrai bonheur, il passe partout, la caméra est de de très bonne qualité ainsi que la réception.
    Les qui suivent fonctionnent bien en mode ACRO qu'il faut paramétrer dans cleanflight :
    ROLL P 1.6, I 0,030, D 23
    PITCH P 1.6, I 0,030, D 23
    YAW P 8.5, I 0,045, D 0
    LEVEL 9 0,010 100

    Les modes stabilisés n'ont aucun intérêt sur ce quad.

    • 0 out of 1 people found this review useful.
    Grade
    2016-03-10

    Super petit quad FPV

    Petit quad ultra puissant pour sa petite taille, les PID par défaut ne sont pas bon, ceci fonctionnent mieux mais il faut encore les affiner :
    ROLL P 1.2, I 0,030, D 20
    PITCH P 1.2, I 0,030, D 20
    YAW P 1.2, I 0,060, D 10
    LEVEL 5 0,060 100
    Sur spectrum il faut inverser le Yaw et le Roll. Pour les lunettes fatsharck Dominator il vous faudra le recpteur RaceBand 32 canaux

    • 0 out of 2 people found this review useful.
