Freewing F-16 90mm 6S Jet PNP V2 High Performance (Aggressors Camo)

FRW-FJ30631P

New product

Freewing

The next-generation F-16C 90mm EDF from Freewing showcases a range of performance and design upgrades that elevate realism, flight capability, and convenience. Featuring a striking 64th Aggressors Livery, this model honors the distinguished 64th Aggressor Squadron, part of the legendary Aggressor program initiated in 1972

More details

This product is no longer in stock

By buying this product you can collect up to 532 points . Your cart will total 532 points that can be converted into a voucher of US $12.77 .


US $639.00

Free shipping in Europe (UE)* (log in to benefit)

Accessories and other versions

Data sheet

Type of kit: PNP
Wingspan: 955mm / 37.6in
Length (mm): 1457mm /57.4in
Weight (gr): 3.17kg (7.0lbs) (without battery and armament)

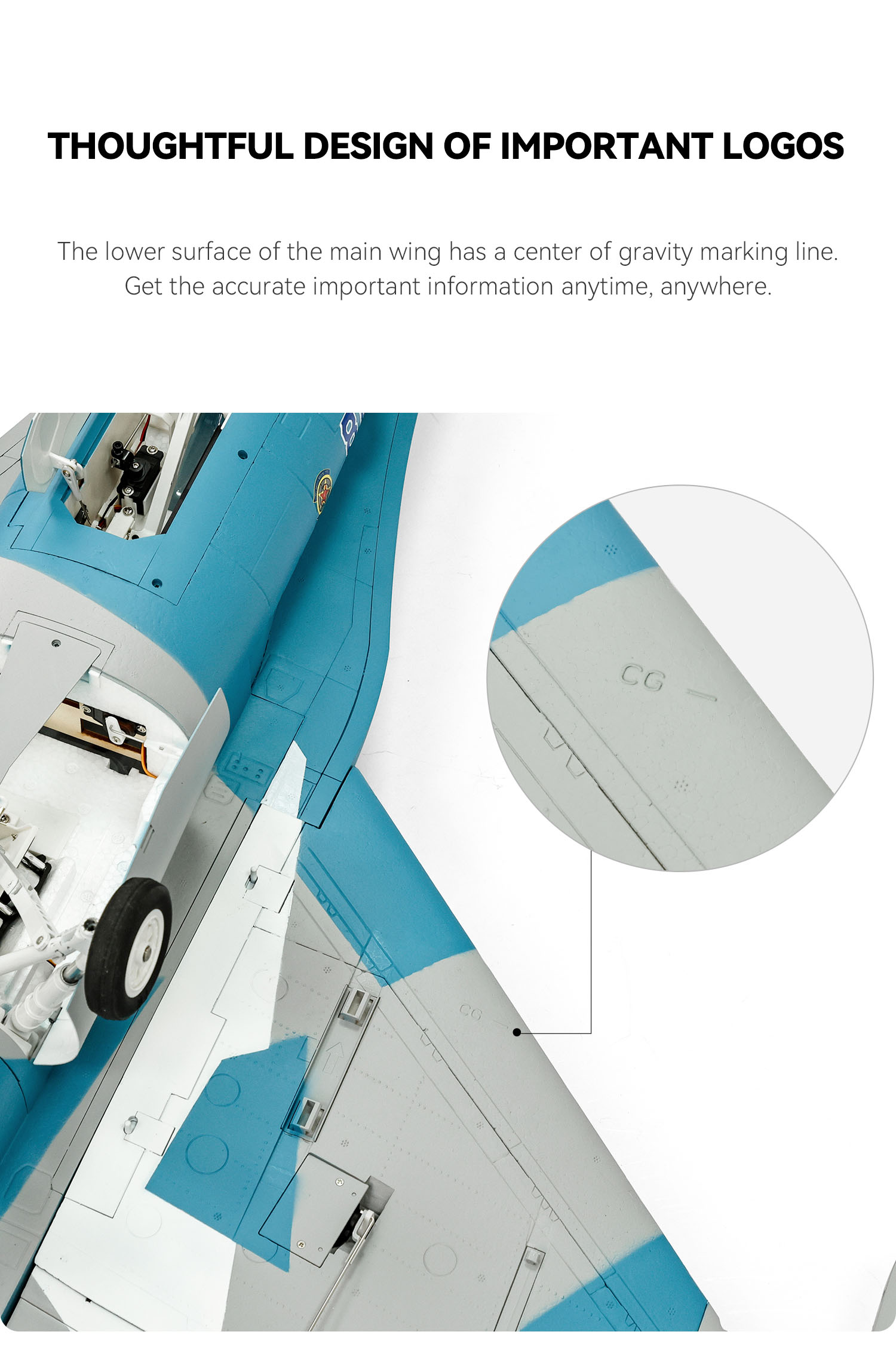

CG (Center of Gravity) 110mm (4.3") from the leading edge of the wing at the root
Servos 6x 9 gr standard hybrid digital gear, 3x 17 gr digital metal gear, 2x 23 gr digital metal gear
EDF Diameter Class (mm): 90
Blades: 12
Turbine shroud Synthetic
EDF Rotor Synthetic
Power System 3668-1960Kv
Turns/min/Volt (Kv): 1960Kv
Motor Type: In-Runner
Electronic Speed Control 120A Brushless with 7A UBEC, thrust reversing
Battery Cells: 6s - 22.2v
Battery Capacity (mAh) 5.000 mAh
Connection: EC-5
Surfaces Ailerons, Elevator, Rudder, Air brakes
Landing Gear Full metal retractable main and steerable nose gear with shock absorbing struts
Lights Navigation lights, Landing light
Material EPO Foam, Carbon reinforcements
Build time 1 hour
Required Radio 6 channels minimum
Recommended pilot skill level Intermediate, Advanced, Expert

More info

Freewing F-16 90mm 6S Jet PNP V2 High Performance (Aggressors Camo)

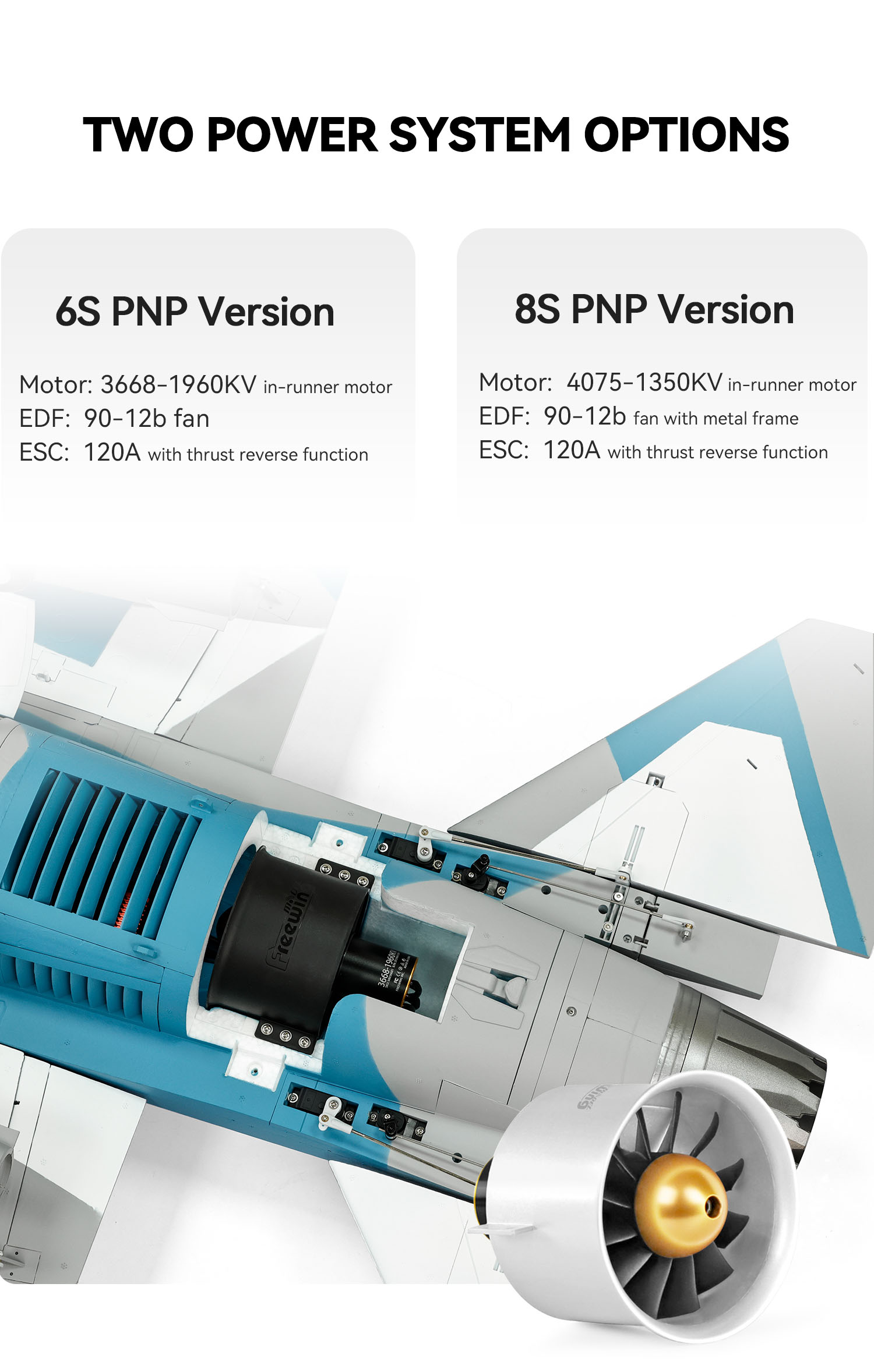

6S Version Note: This is the High Performance 6S version which includes a 3668-1960Kv inrunner motor with 12-blade EDF and a thrust reversing 120A ESC.

Description

Lockheed Martin Officially Licensed Product

The next-generation F-16C 90mm EDF from Freewing showcases a range of performance and design upgrades that elevate realism, flight capability, and convenience. Featuring a striking 64th Aggressors Livery, this model honors the distinguished 64th Aggressor Squadron, part of the legendary Aggressor program initiated in 1972. This squadron played a crucial role in training pilots through dissimilar air combat tactics, emulating potential adversaries.

With quick-release wings, an easier fuselage assembly, and a slide rail system for armament, the updated F-16C 90mm prioritizes ease of use. Additionally, the scale appeal and functionality have reached new heights with fully functional, servo-driven air brakes, updated scale details, extra molded-in rivets, painted landing gear, and other intricate detail components. The Freewing F-16C 90mm is designed to impress.

The new power system, featuring a 3668-1960Kv inrunner motor and a 12-blade EDF, delivers exceptional speed and power for long vertical climbs and rapid show passes over the runway. It also includes reverse thrust for short landing rollouts.

Experience the thrill and precision of the Freewing F-16C 90mm EDF – a true tribute to its full-scale counterpart, bringing advanced aerodynamics and stunning detail to your collection.

Features

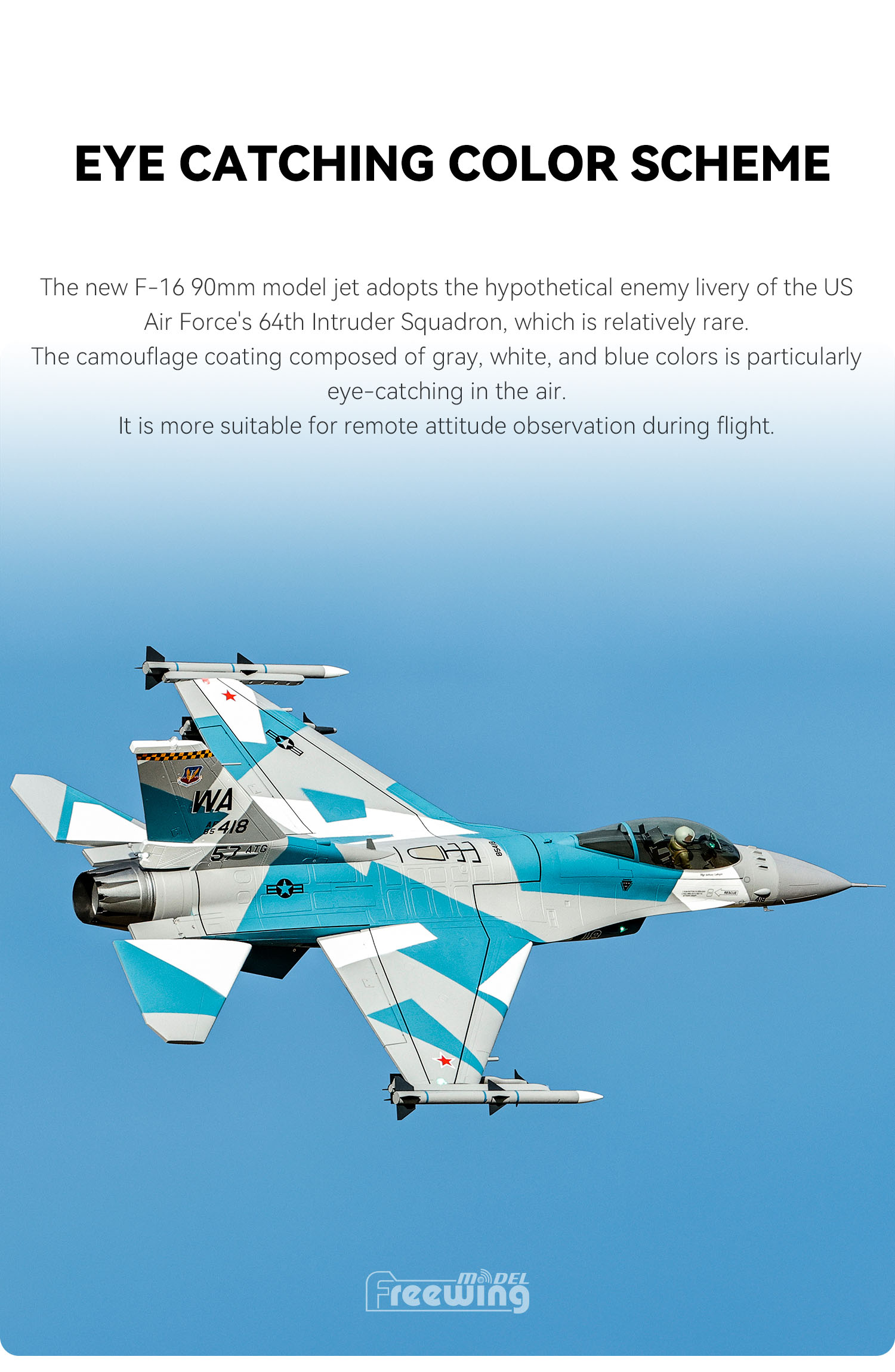

  • NEW! 64th Aggressors Camo Livery: A striking, historically inspired camouflage design

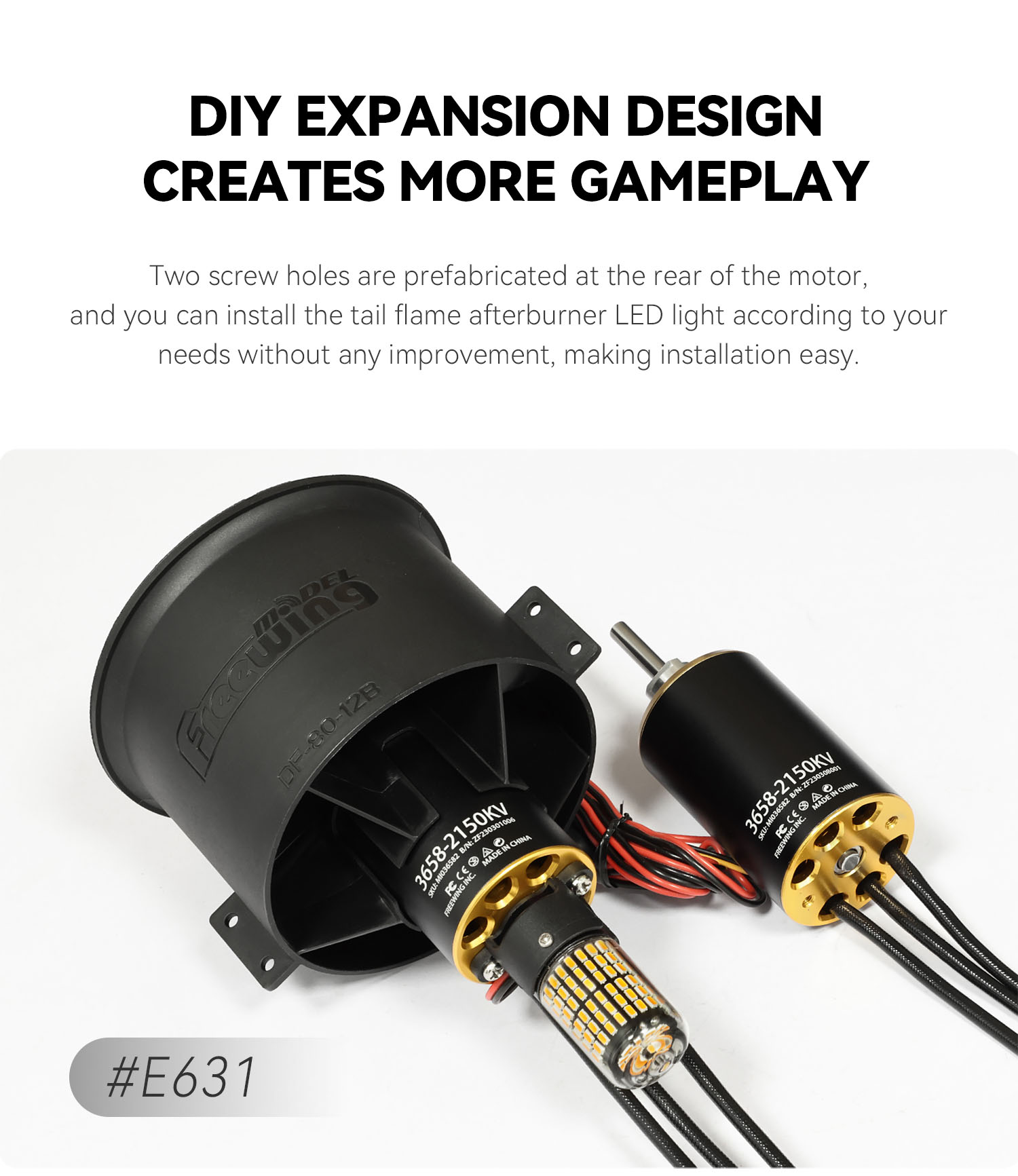

  • NEW! Power System: 3668-1960Kv Inrunner Motor with a 90mm 12-blade EDF
  • NEW! 120A Brushless ESC with 7A UBEC and Thrust Reversing: Provides reliable and efficient power management as well as thrust reversing capability

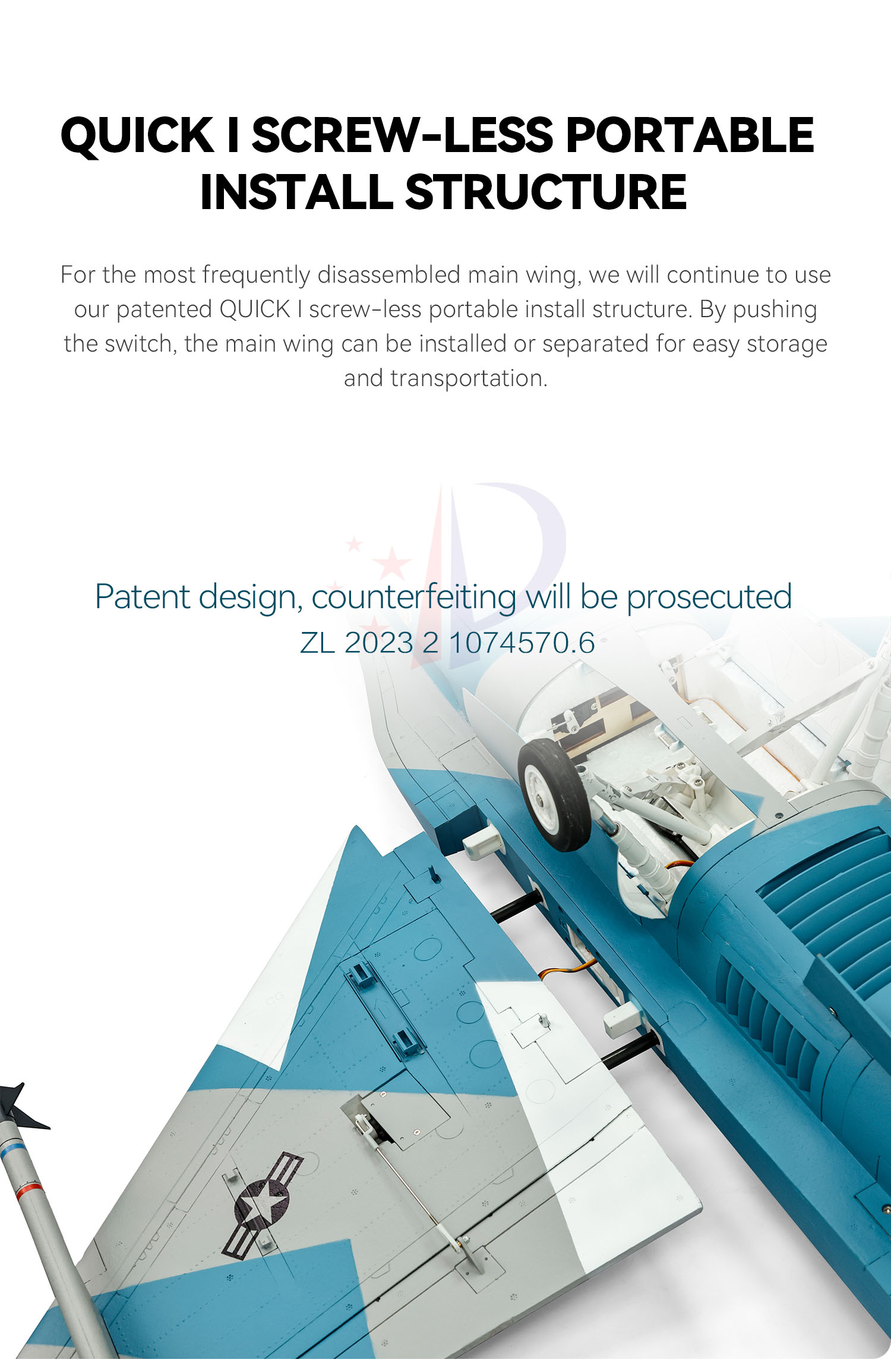

  • NEW! Screwless, Quick-Release Main Wings: For easy assembly and transport

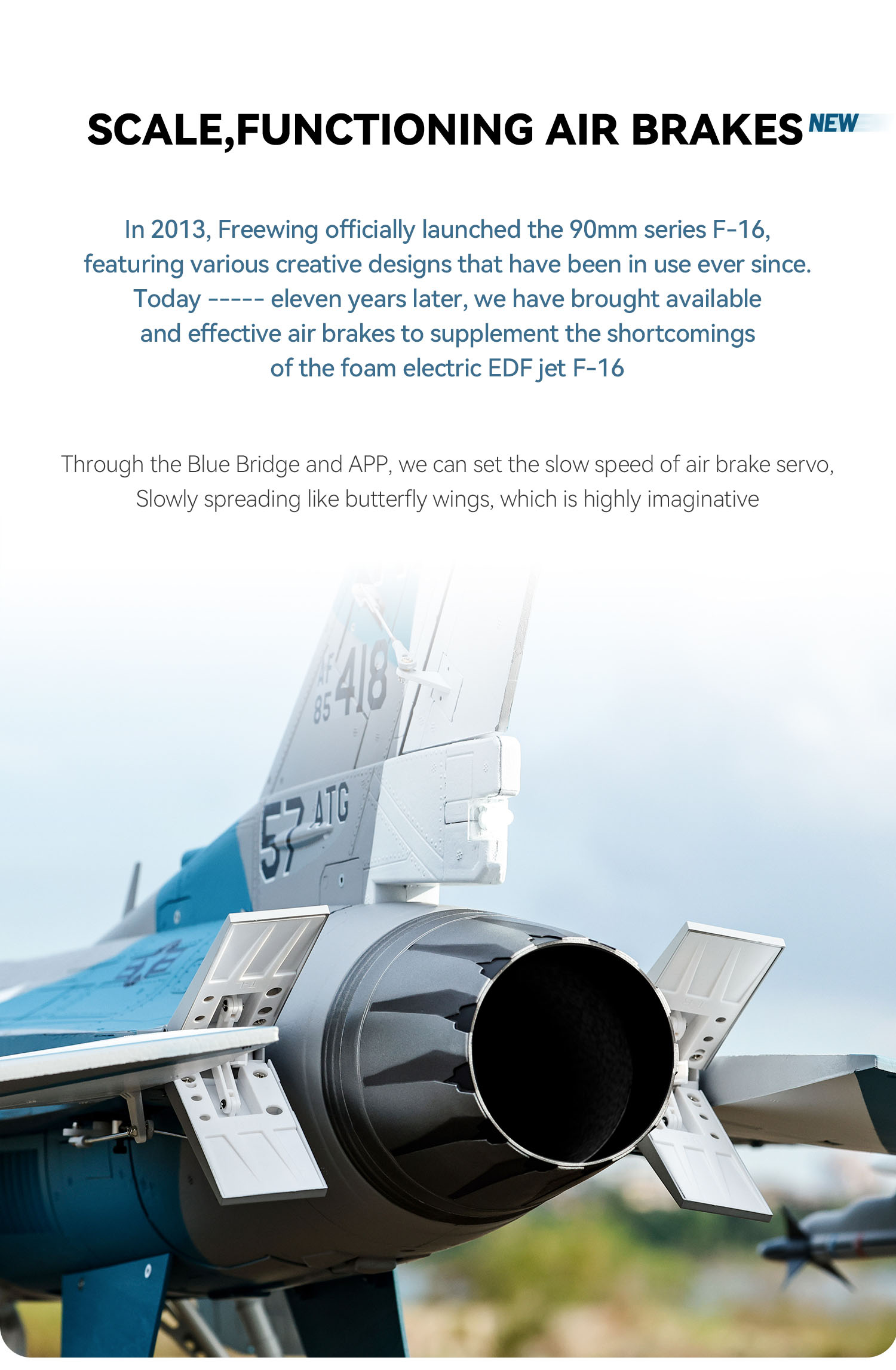

  • NEW! Scale, Servo-Driven Air Brakes: Enhances scale realism and performance
  • NEW! Quick Attach Rail System: Simplifies fuel tank and armament attachment

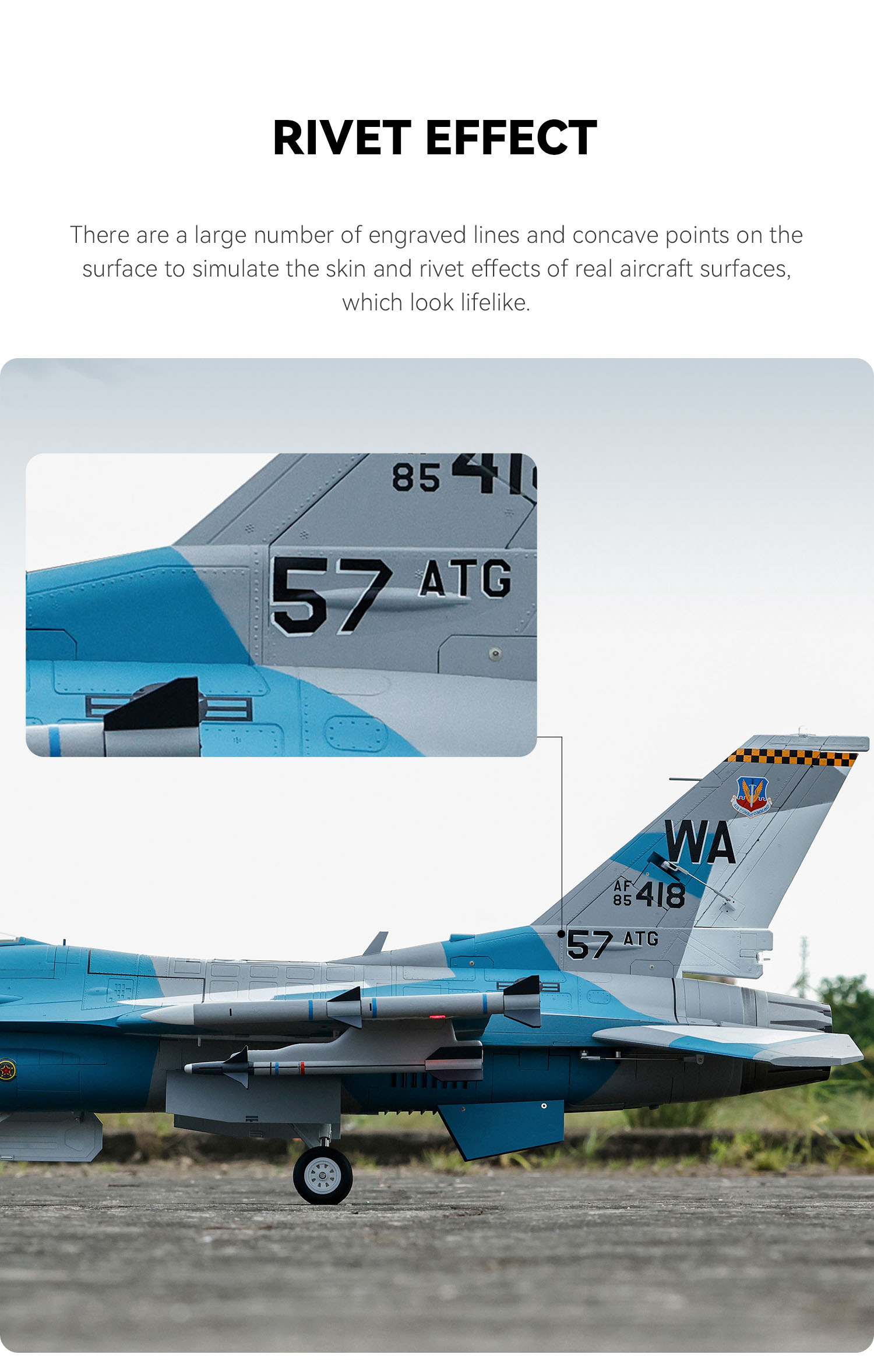

  • NEW! Additional Molded-In Scale Rivet and Panel Details: Adds to the model’s scale appeal and authenticity

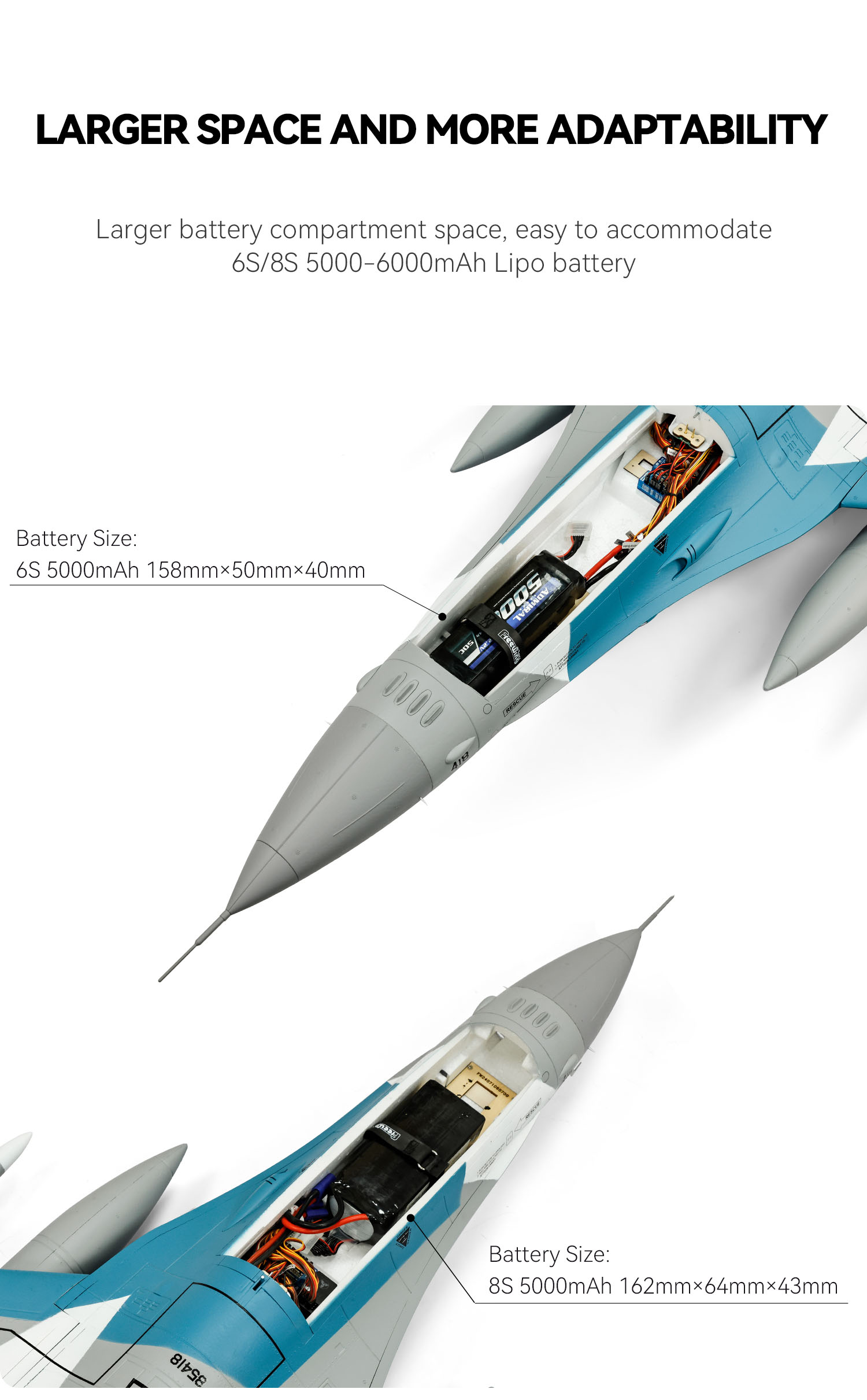

  • NEW! Increased Battery Compartment Size: Accommodates larger batteries
  • NEW! Plastic Corner Protection: Around the battery compartment and fuselage chines for added durability
  • NEW! Additional Plastic Scale Details Included: Enhances the model’s visual appeal

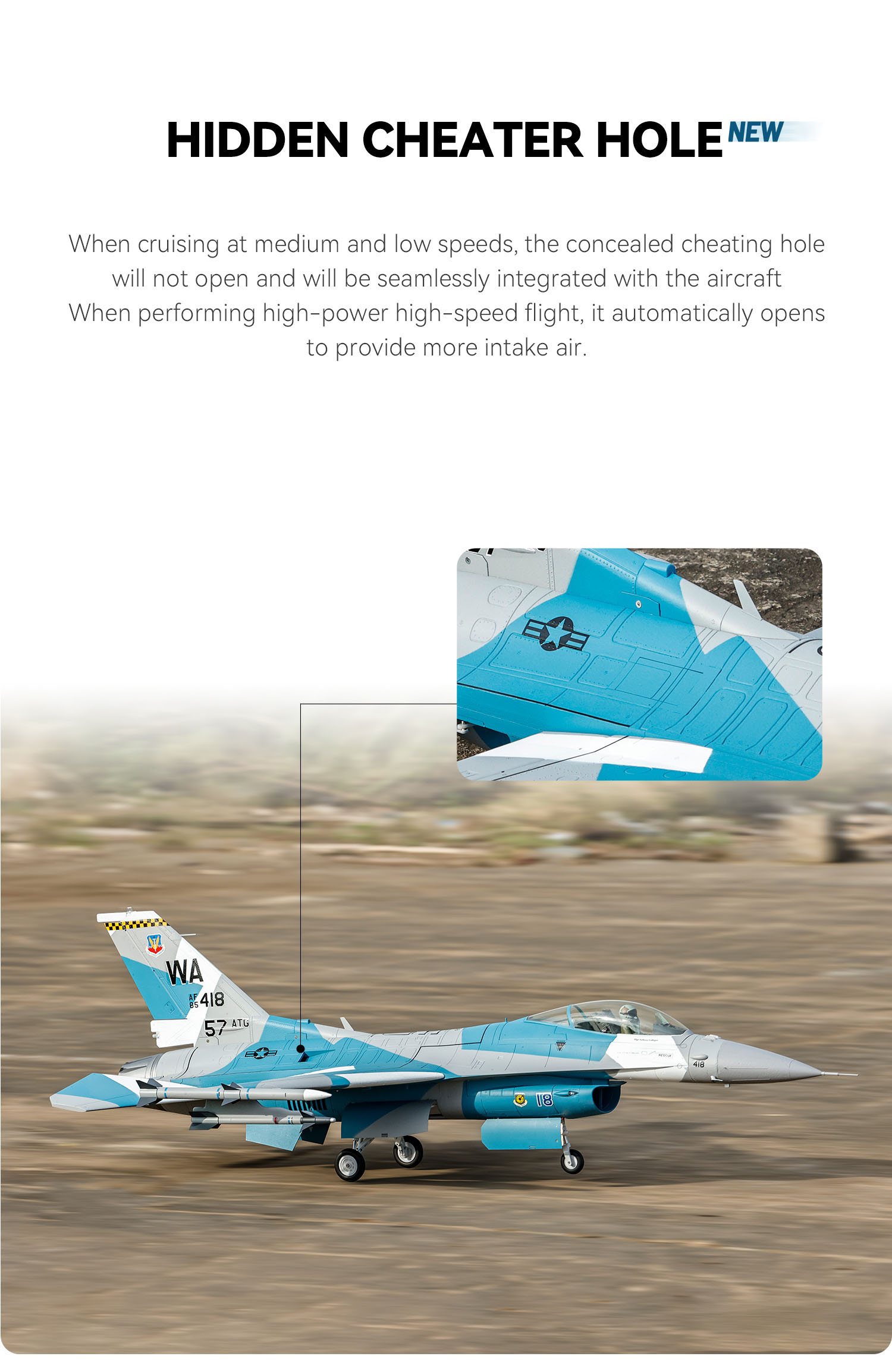

  • NEW! Spring-Loaded Cheater Holes: Improves power, speed, and overall performance

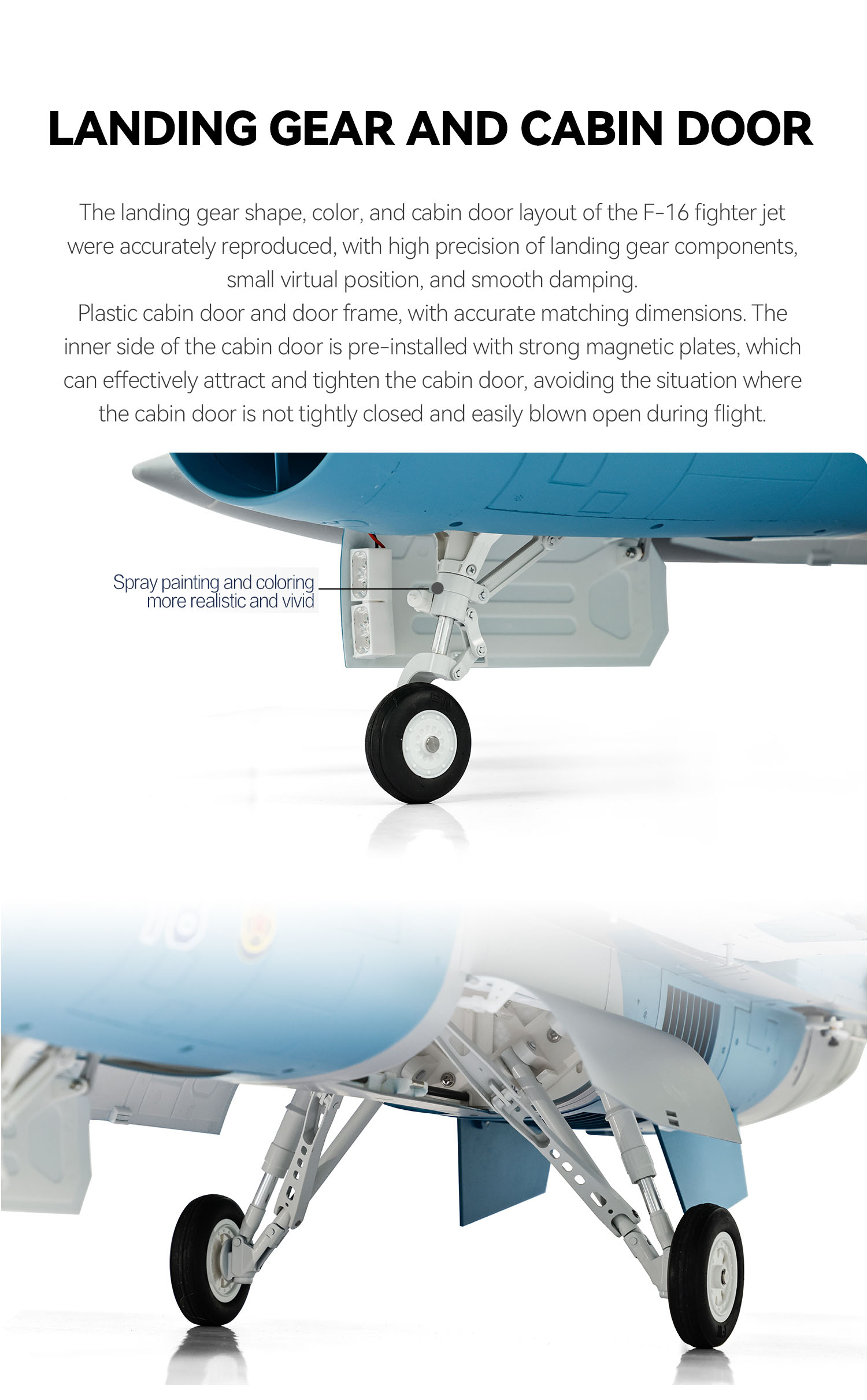

  • NEW! Stronger Landing Gear Mounts and Painted, CNC-Machined Landing Gear: Adds scale aesthetic appeal and adds durability
  • NEW! Spring-Loaded Battery Latch: Secures the battery with ease

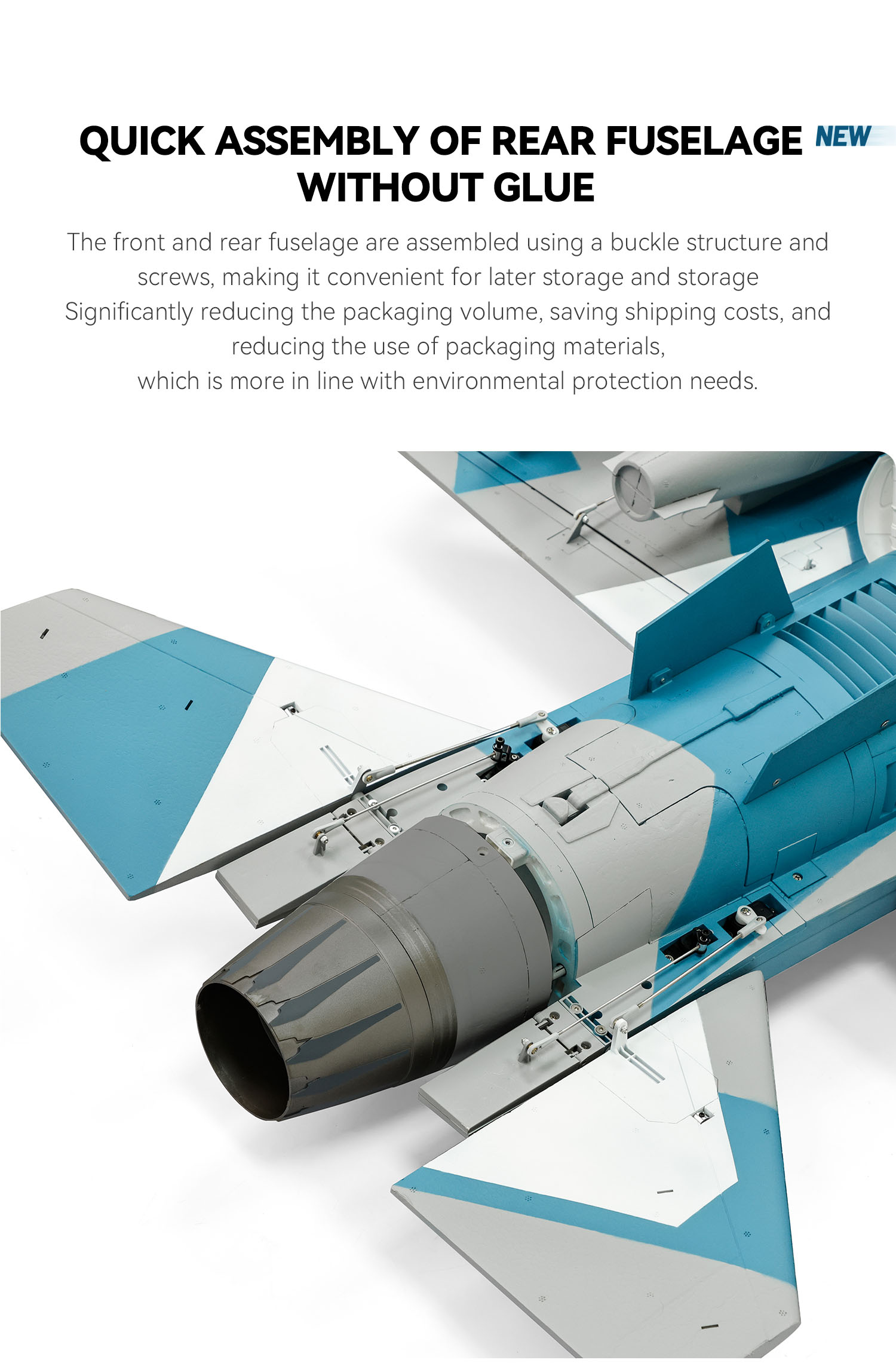

  • NEW! Glueless Rear Fuselage Assembly: Simplifies the build process
  • Officially Licensed by Lockheed Martin
  • Sequenced gear doors provide added realism and reduced drag
  • Bright LED navigation and landing lights for enhanced realism and dawn/dusk maneuvers
  • Carbon fiber wing spars
  • Ball linkages on all control surfaces
  • Nylon hinges on all control surfaces

Specifications

  • Wingspan: 955mm / 37.6in
  • Lenght: 1457mm /57.4in
  • Empty weight: 3.17kg (7.0lbs) without battery and armament
  • Motor: 3668-1960Kv Inrunner
  • EDF: 90mm 12 pales
  • ESC: 120A Brushless 7A UBEC, with EC5 connector and thrust reversing
  • Servos : Digital Hybrid gear servo 9g ╳ 6pcs - Digital Metal gear servo 17g ╳ 3pcs - Digital Metal gear servo 23g ╳ 2pcs
  • CG: 110mm (4.3") from the leading edge of the wing at the root
  • Recommended Battery: 6S 22.2V 5000mAh LiPo with EC5 connector
  • Ailerons: Yes
  • Elevator: Yes
  • Throttle: Yes
  • Rudder: Yes
  • Flaps: No
  • Retractable Landing Gear: Aluminium CNC, amortisseur
  • Lights: Yes
  • Hinge Type: Reinforced nylon
  • Recommended Battery: 6 channels
  • Recommended Environment: Outdoor
  • Recommended Surface: 150+ foot paved runway or short manicured grass
  • Build time: 1 hour
  • Minimum Age : 14 years +
  • Skill Level: Intermediate/Advanced/Expert

Includes

  • Freewing F-16 V2 High Performance 90mm EDF Jet - PNP
  • 12-Blade EDF power system (installed)
  • 3668-1960Kv brushless inrunner motor (installed)
  • 120A ESC with reverse thrusting and EC5 connector (installed)
  • Electronic retractable landing gear (installed)
  • Servos, LED Lights (installed)
  • English manual

Requires

  • Minimum 6 Channel Radio (7 channels required for reverse thrusting)
  • Minimum 6 Channel Receiver (7 channels required for reverse thrusting)
  • 6 Cell 22.2V 5000 mAh 50c Lipo Battery with EC5 Connector
  • Lipo Battery Charger 6 cell

Freewing F-16 90mm HP Manual EN
